Multicolor Container Automatic UV Printer With Hot Stamping and Labeling Functions
Подробная информация о продукте:
| Место происхождения: | Дунгуань Гуандун Китай |
| Фирменное наименование: | SENNY |
| Сертификация: | CE SGS |
| Номер модели: | СР388 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | фанерный пакет |
| Время доставки: | один месяц |
| Условия оплаты: | Т/Т |
| Поставка способности: | 10шт /месяц |
|
Подробная информация |
|||
| Стиль: | планшетный принтер с клипсами размера | Гарантия: | 1 год и пожизненная техническая поддержка |
|---|---|---|---|
| Количество цветов: | Варьируется (например, 1–8 цветов) | Фидер: | Автомат питания |
| Цвет: | Многоцветный | Сушилка: | увел |
Характер продукции
Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles,jars,caps and other materials.
The machine adopts an intergrated turnable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as +/- 0.1mm,and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of productsquipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-usetouch screen and wireless tablet operation, with reliable performance.
Optional Configuration
product lying flat feeding and discharging function
Finished product quality inspection function.
LED-UV curing system
Plasma surface treatment function.
Bottle body visual registration function
Bottle bottom visual registration function.
Hot stamping function
Labeling function.
Technical Parameters
MachineModel SRS288 SRS388 SRS488 SR588
Work Station 8 10 12 16
Printing Speed Up to 60pcs/min Up to 60pcs/min Up to 60pcs/min Up to 60pcs/min
Diameter at 360 Degree 13-100mm 13-100mm 13-100mm 13-100mm
Container Heighta 20-320mm 20-320mm 20-320mm 20-320mm
Max Printing Length 300mm 300mm 300mm 300mm
Max Printing Height 200mm 200mm 200mm 200mm

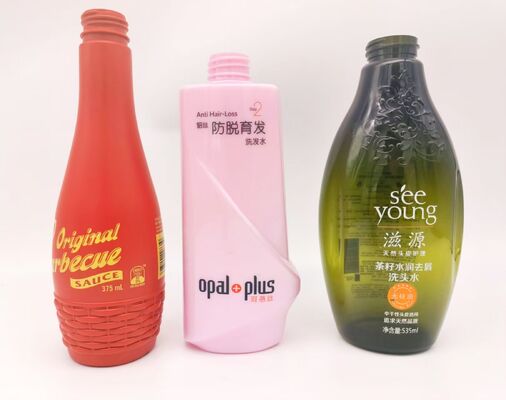

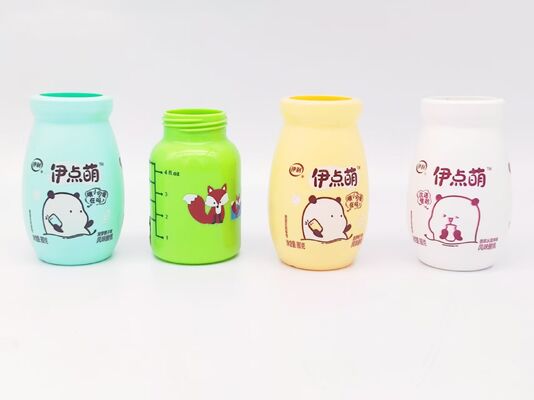

Printing Samples
