4 Color Robotic Arm Servo Drive Auto Hot Stamping Machine For Round Products
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Senny |
| Сертификация: | CE SGS |
| Номер модели: | SRS1669-DR4CH |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Фанерная упаковка |
| Время доставки: | один месяц |
| Условия оплаты: | T/T, L/C. |
| Поставка способности: | 10шт /месяц |
|
Подробная информация |
|||
| Печать цвета:: | 4 колонки печати на экране + 1 колонка горячего штамповки | станция: | 5 станций |
|---|---|---|---|
| Печать долговечности: | Высокая долговечность | Состояние: | Новый |
| Гарантия: | 1 год | Послепродажная служба: | Видео или онлайн |
| Условия оплаты: | T/T. | Время доставки: | 45 дней |
| Сертификация: | CE SGS | Детали пакета: | Фанерная упаковка |
Характер продукции

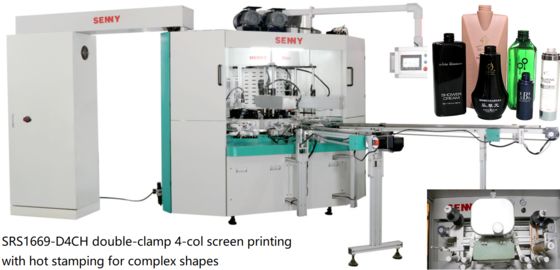

4 Color Robotic Arm Servo Drive Auto Hot Stamping Machine For Round Products
Application
This machine is developed around a multi-purpose design concept, focusing on high-precision screen printing and efficient hot stamping operations—two core processes integrated to meet diverse decorative needs of circular products. It is particularly suitable for daily chemical and daily-use items such as round lotion bottles, small shampoo jars, and daily cups (like insulated plastic cups or ceramic mugs).
With its adaptive curved-surface processing structure, the machine enables flexible operation modes: it can either perform localized screen printing/hot stamping (e.g., for brand logos on bottle shoulders or capacity marks on cup bodies) or achieve 360-degree full-range seamless processing, perfectly adapting to different decorative requirements of circular workpieces.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features
Blanking device
The bottles are gripped into the fixture by a robotic arm so that the product stands on the conveyor belt. If the bottles cannot stand because they are too small, too tall or have an irregular shape at the bottom, bottle holders can be added to the conveyor belt.
Flaming treament device for PP/PE material
UV curling device
Customer's plant using our machine
Support and Services:
We provide comprehensive technical support and service guarantees for cap printing machines. Our professional team consists of experienced and well-trained technicians, ready to solve any problems that arise during the operation of your machine. Our support services cover various aspects, including troubleshooting, parts replacement, equipment maintenance, and software upgrades. We also offer on-site repair and maintenance services to ensure that the equipment can be properly handled on-site. In addition, we have a complete range of replacement parts and supplies to meet your various needs.
We always take pride in providing excellent customer service. Our team is on call 24/7 to answer your questions and handle issues at any time. We are committed to delivering high-quality services and fully ensuring your satisfaction.
If you have any questions or need assistance, please fee
