CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube

Подробная информация о продукте:

Место происхождения: Dongguan China
Фирменное наименование: SENNY
Сертификация: CE SGS
Номер модели: SRS829

Оплата и доставка Условия:

Количество мин заказа: 1 шт
Цена: negotiable
Упаковывая детали: Фанерная упаковка
Время доставки: 45 дней
Условия оплаты: T/T.
Поставка способности: 10 ПК/месяц
Лучшая цена контакт

Подробная информация

Модель машины: SRS829 Цвет печати: 2 цвета
Бренд: Сенни Послепродажное обслуживание: Видео или онлайн
Сертификация: CE SGS Гарантия: 1 год
Применимые отрасли: Типографии, Производственное предприятие, Бытовое использование, Промышленность, Рекламная компания
Выделить:

CNC automatic UV curing printing machine

,

2-color screen printing machine for bottles

,

45 Pcs/Min tube printing machine

Характер продукции

  • Product Description         2-Color 45 Pcs/Min CNC Automatic UV Curing Printing Machine For Bottle And Tube



Machine Feature



  • The machine is suitable for screen printing various colors of UV ink,hot stamping and other decorations on bottles,jars,caps and other shapes of products,which are made of plastic,metal,glass and other materials.

  • The machine is specially developed for small container printing,with compact structure and small footprint.

  • The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm ,and the product won't be scratched.

  • The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and services functions(industry 4.0)



CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 0







Optional Configuration:





  • LED-UV  curing system.



  • Hot stamping function.



  • Finished product quality inspection function.



  • Plasma surface treatment function.





  • Visual registration function.





Technical Parameters:



Machine Model SRS829
Work Station 2
Diameter at 360 Degree 13-60mm
Container Height 20-200mm
Max.Printing Length 200mm
Max.Printing  Height 160mm
Printing Speed Up to 45 pcs/min

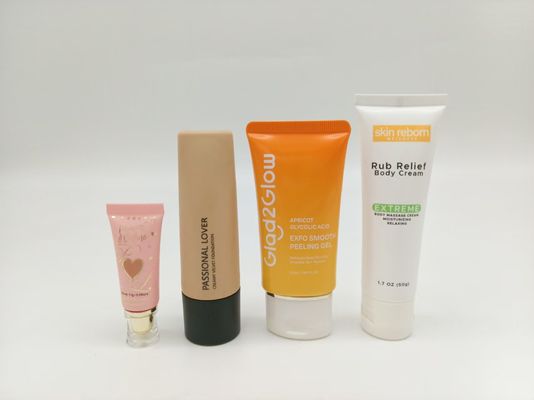

Printing Sample





CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 1

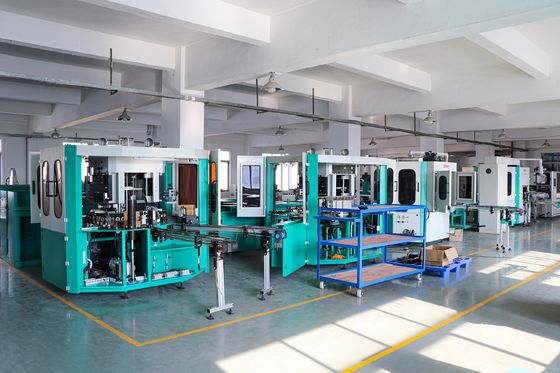

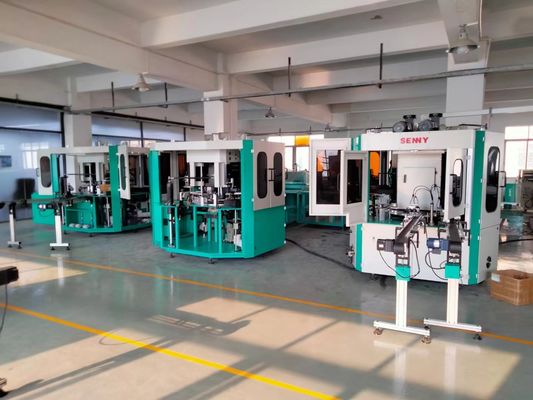

Our Factory and machines:







CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 2



CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube 3





The differences between linear screen printing machine and CNC rotary screen printing machine:





  • The linear printing machine has a faster printing speed than the rotary printing machine, but its printing precision is lower in comparison.​

  • The linear printing machine adopts a modular design: the more colors need to be printed, the larger the machine becomes, while the rotary printing machine is more space-saving.

  • CNC printing machines are more conducive to remote management and service.

  • All printing functions of a CNC printing machine are completed with the same set of fixtures, which can avoid wear and tear.

  • CNC silk screen printing machines can adjust parameters such as the printing head via a wireless touchscreen, while linear printing machines require manual adjustment.
