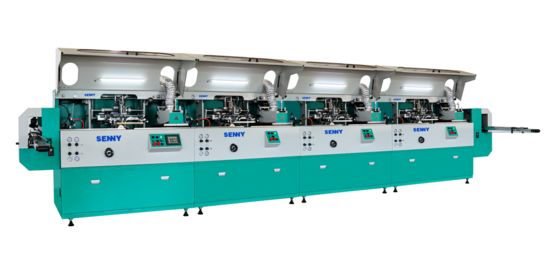

1-8 Color Modular Bottle Screen Printer For Round Containers Up To 100pcs/Min
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Senny |
| Сертификация: | CE SGS |
| Номер модели: | SL1466 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 набор |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Фанерная упаковка |
| Время доставки: | один месяц |
| Условия оплаты: | T/T. |
| Поставка способности: | 10шт/месяц |
|
Подробная информация |
|||
| Автомат: | Полностью автоматически | Тип тарелки: | Экранный принтер |
|---|---|---|---|
| Печатные цвета: | от 1 до 8 | Печать долговечности: | Высокая долговечность |
| Гарантия: | 1 год | Послепродажная служба: | Видео или онлайн |
| Сертификация: | CE SGS | Детоискалы упаковки: | Фанерная упаковка |
| Условия оплаты: | T/T. | ||
| Выделить: | modular bottle screen printer,round container screen printer,high-speed bottle screen printer |
||
Характер продукции
1-12 Color Modular Bottle Screen Printer For Round Containers Up To 100pcs/Min
Features:
The SL1466 Container UV Screen Printing Machine is a fully automatic screen printing equipment for cylindrical and special-shaped containers, with an extremely wide range of applications. It can perform screen printing on various cylindrical and special-shaped containers such as plastic bottles, metal cans, glass jars, ceramic bottles, and stainless steel kettles. It is capable of printing thermosetting inks of various colors, meeting the container decoration needs of different industries including food and beverage, beauty and skin care, daily chemicals, and crafts. Whether it is a simple logo, an intricate pattern, or a gradient color effect, this machine can achieve high-precision and high-quality printing, ensuring that the printed patterns are clear and bright with strong adhesion.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
Feeding System
Gearbox feeding: Stably conveys products to be processed
Robot vacuum directional feeding: Accurately transfers materials in a fixed direction
Surface Treatment
Host speed-regulating motor-driven surface treatment: Adjusts treatment intensity on demand
Electrostatic dust removal: Effectively eliminates static electricity and dust on product surfaces
Flame surface treatment: Enhances material surface adhesion
Printing Aids
Pre-positioning: Ensures products are in accurate positions before printing
Container adjustable pressure inflatable printing: Adapts to different containers via inflation pressure adjustment
Automatic screen printing: Realizes automatic printing operation
Motorized printing head lifting: Facilitates screen loading/unloading
Motorized screen lifting: Simplifies screen wiping
Curing System
High-intensity U.S. UV lamp curing (optional LED-UV curing): Ensures rapid curing of printed patterns
Speed-regulating motor rotation (for cylindrical containers): Guarantees uniform curing when passing UV
Unloading System
Robot vacuum unloading: Smoothly unloads finished products
Unloading speed-adjustable conveying: Flexibly adjusts finished product conveying speed
