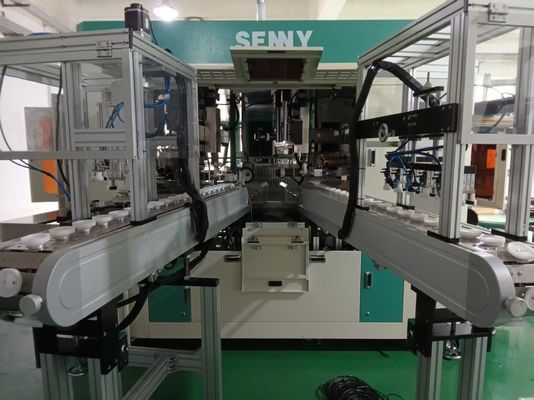

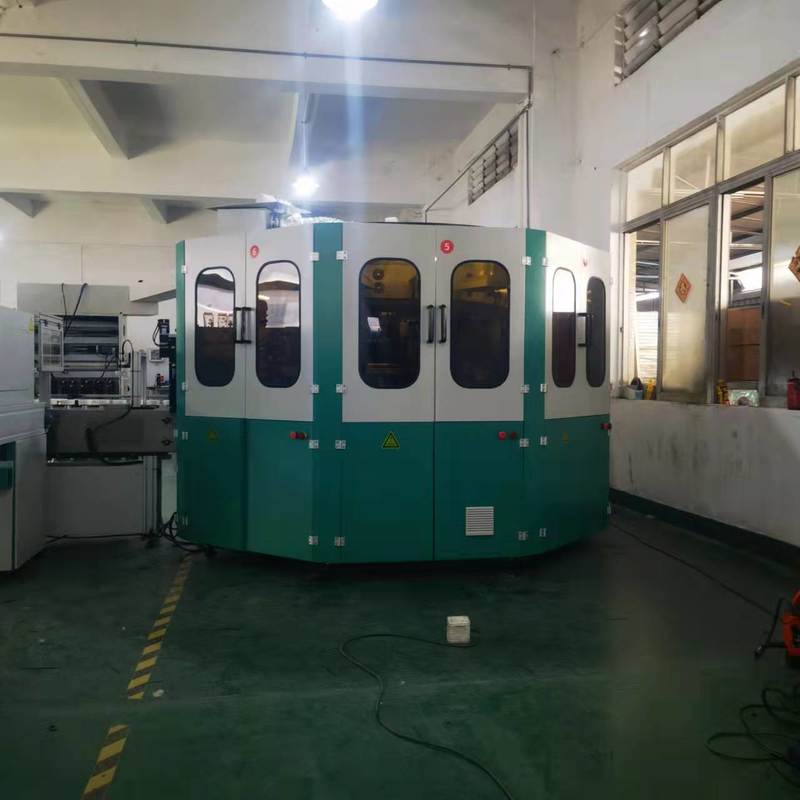

55pcs/Min Bottle Screen Printer For High-Speed Production Lines And Superior Scratch Resistance

55pcs/Min Bottle Screen Printer For High-Speed Production Lines And Superior Scratch Resistance

Machine Application:

The advantages and application scope of this machine are as follows:
360° seamless curved surface printing: The print head fits closely to various curved substrates (e.g., arc-shaped bottle bodies, round can surfaces), with no visible seams on the printed surface;
6-color UV ink: Vibrant and fade-resistant, featuring high color saturation that can restore the bright tones of the design, and no easy fading during long-term use;
Fast drying & high efficiency: Relying on UV curing technology, it cures in just seconds, requiring no additional drying equipment. It is suitable for high-speed production lines to increase throughput;
Scratch resistance & durability: The cured UV ink has strong adhesion and high hardness, which can withstand daily handling and friction (such as frequent transportation and slight collisions), keeping the printed patterns clear and intact;
Wide application range:
Bottles: Beverage bottles (e.g., PET carbonated drink bottles), cosmetic containers (e.g., glass jars for face creams, PP bottles for serums);
Cans: Food cans (e.g., tinplate cans for yellow peaches/waxberries), aerosol cans (e.g., aluminum cans for hairsprays or glass cleaners);
Lids: Bottle caps (e.g., plastic caps for mineral water/sports drinks), jar lids (e.g., metal lids for honey/jam);
Others: Round, oval, and special-shaped items (e.g., flat-sided skincare sample containers, multi-faceted aromatherapy boxes), made of materials including plastic (PET, PP), glass (e.g., borosilicate glass jars for high-end essences), and metal (aluminum alloy, tinplate).

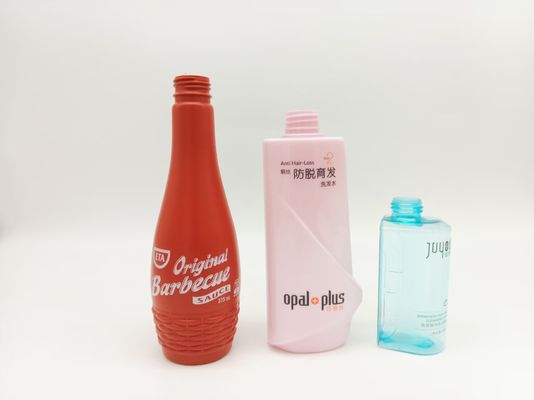

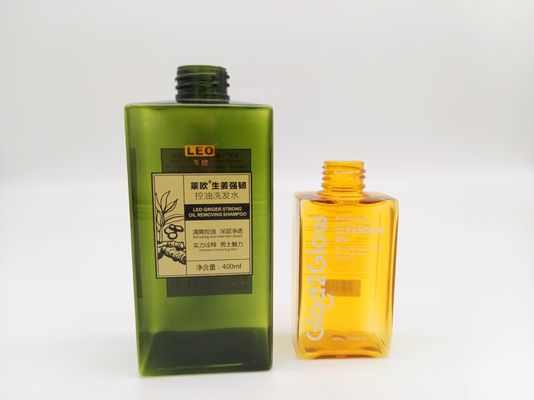

Printing sample

Round container                                           Polygon container                                         Oval container



Main Functions:

Wireless tablet control function;
Remote service management function;
Speed-adjustable conveyor belt separated feeding function;
Bottle standing manipulator feeding function;
Digital control servo motor drive 3-color 360-degree printing function;
UV curing function;
Bottle standing manipulator discharge function;
Speed-adjustable conveyor belt discharging function.

Workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.

Technical Specifications:


Screen printing device                                                      UV curing device




What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?

1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.
2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.
3. CNC printers are easier to use with remote management and service feature.
4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.
5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
